Details :

Features

• AC/DC Current Measurement:

  • AC current range: 600mA - 10A, with 0.1mA resolution and ±(2.5%+8d) accuracy.
  • DC current range: 600mA - 10A, with 0.1mA resolution and ±(2.2%+8d) accuracy.

• Voltage Testing:

  • AC voltage: 600mV - 600V, with 0.1mV resolution and ±(1.5%+10d) accuracy.
  • DC voltage: 600mV - 600V, with 0.1mV resolution and ±(1.2%+10d) accuracy.

• Capacitance:

  • 0nF - 60mF, with 1pF - 1μF resolution and ±(10%+8d) accuracy.

• Resistance Measurement:

  • 0Ω - 60MΩ, with 0.1Ω - 10KΩ resolution and ±(1.5%+10d) accuracy.

• Frequency (Hz):

  • 0Hz - 60MHz, with 0.1Hz - 10KHz resolution and ±(4%+10d) accuracy.

• Real-time Temperature:

  • Monitor temperature in real-time, making it suitable for tasks that involve temperature-dependent components.

• Non-contact Voltage (NCV) Detection:

  • Safely detect AC voltage without direct contact, offering additional protection when working with live circuits.

• Smart Touch Interface:

  • The user-friendly touch screen ensures quick and easy operation for all testing functions.

• Lithium Battery Direct Charging:

  • Includes the convenience of direct charging via a 3.7V 700mAh lithium battery.

• Additional Features:

  • Buzzer: Alerts when tests are complete or when specific conditions are met.
  • Flashlight: Useful for working in low-light environments.
  • Zero FireWire Detection: Identifies live wires for added safety.
  • Data Retention: Allows you to hold measurement values on the display.
  • VA Reverse Screen: Ensures visibility from different angles.

• Lightweight and Portable:

  • Weighs just 120g, making it easy to carry and use in various settings.

Specifications

• Max Count: 6000 counts
• Display Screen Size: 8.95 cm (3.52 inches)
• Battery: 3.7V 700mAh lithium battery
• Material: ABS (durable and lightweight)
• Low Power Prompt: Alerts you when battery is running low.

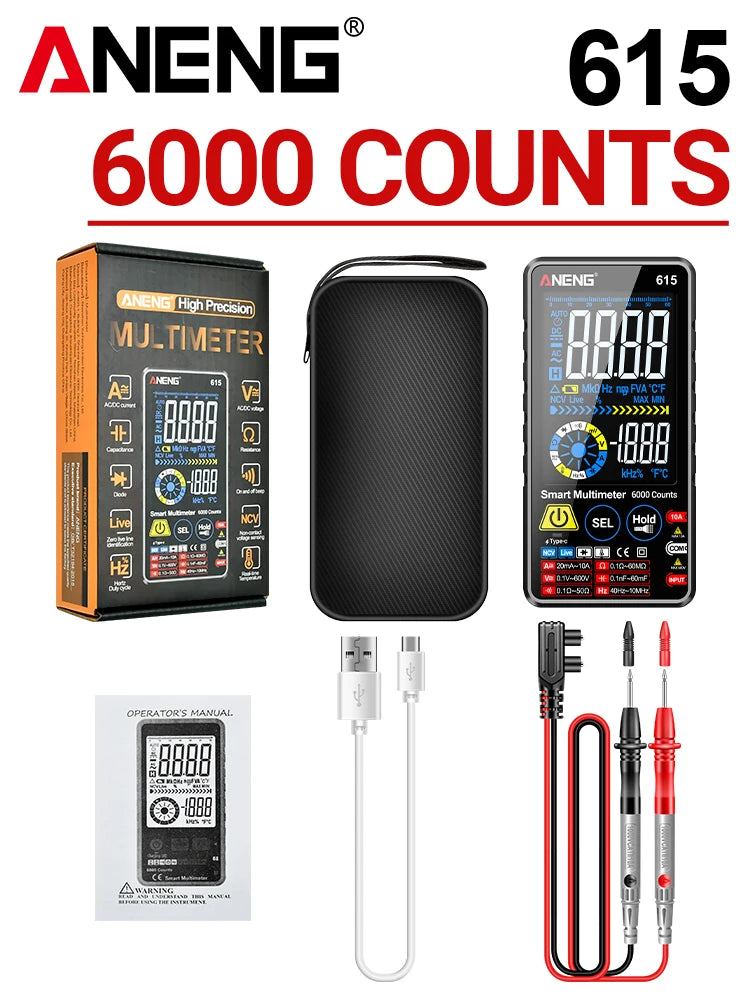

Package Includes

• 1 x Smart Multimeter
• 1 x Test Pen Line
• 1 x Charging Cable
• 1 x Storage Bag
• 1 x Manual
• 1 x Packing Box
