6000 Counts Digital Smart Multimeter Transistor Testers True RMS Auto Electrical Capacitance Meter Temp Resistance

6000 Counts Digital Smart Multimeter Transistor Testers True RMS Auto Electrical Capacitance Meter Temp Resistance

Regular price $43.99 AUD
Regular price $16.63 AUD Sale price $43.99 AUD
Sale Sold out

Details :

Features:

  • True RMS Measurement: Provides accurate readings for AC voltages and currents, ensuring reliable results even in complex waveforms.
  • Large 6000 Counts Display: The large digital display allows for easy and clear readings of measurements, making it ideal for both professionals and DIYers.
  • Wide Temperature Range: Operates in a wide temperature range of 0-40°C, making it suitable for use in various environmental conditions.
  • Automatic Testing: The multimeter has auto-test capabilities, simplifying the process of testing circuits and components without manual adjustments.
  • Automatic Shutdown: Conserves battery life by automatically shutting down after 15 minutes of inactivity.
  • Compact and Lightweight: Powered by 2 x 1.5V AAA batteries (not included), it is easy to carry and use in various applications.

Specifications:

  • AC Current: 6000mA/10A, Accuracy: ±(1.0% reading + 8 digits)
  • DC Current: 6000mA/10A, Accuracy: ±(1.0% reading + 5 digits)
  • DC Voltage: 6V/60V/600V, Accuracy: ±(0.5% reading + 3 digits)
  • AC Voltage: 6V/60V/600V, Accuracy: ±(0.8% reading + 5 digits)
  • Line On-Off Test: 1Ω
  • Resistance: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ, Accuracy: ±(0.8% reading + 3 digits)
  • Diode Test: 1V
  • Capacitor Measurement:
    • 6nF: Accuracy ±(10% reading + 40 digits)
    • 60nF/6uF/60uF/600uF/6mF/60mF: Accuracy ±(2.5% reading + 20 digits)
  • Temperature:
    • Range: -40°C to 1000°C (Accuracy ±(1% reading + 3°C))
    • Range: -40°F to 1832°F (Accuracy ±(1% reading + 3°F))
  • Frequency: 100Hz/1000Hz, Accuracy ±(1.0% reading + 5 digits)

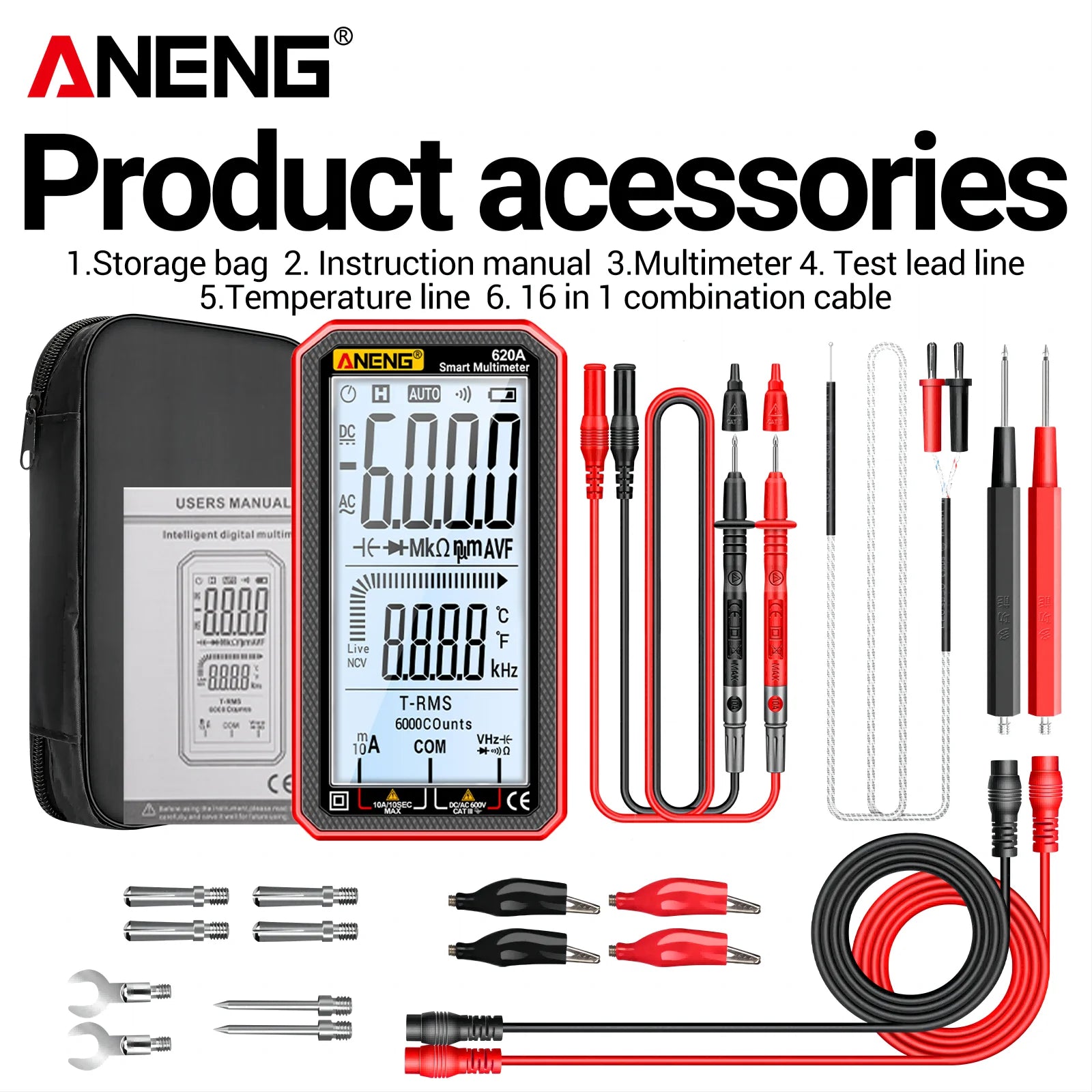

Package Includes:

  • 1 x Multimeter
  • 2 x Test Probes
  • 1 x Thermocouple
  • 1 x User Manual
  • Optional package selection depending on your choice.
