Details :

Features

1. Comprehensive Measurement Functions:

   • AC Current: 0mA to 10A
   • DC Current: 0mA to 10A
   • AC Voltage: 1mV to 750V
   • DC Voltage: 0.5mV to 1000V
   • Capacitance: 0nF to 20mF
   • Resistance: 0Ω to 20MΩ
   • Frequency: 0Hz to 10MHz
   • Duty Cycle: 10% to 90%
   • Temperature: -40°C to 1000°C / -40°F to 1832°F

2. Precision & Accuracy:

   • High precision across all ranges:
     • DC Voltage: ±(0.25% reading + 5 count)
     • AC Voltage: ±(0.5% reading + 5 count)
     • DC Current: ±(0.5% reading + 5 count)
     • AC Current: ±(0.8% reading + 5 count)
     • Resistance: ±(0.5% reading + 5 count)
     • Frequency: ±(2.5% reading + 5 count)

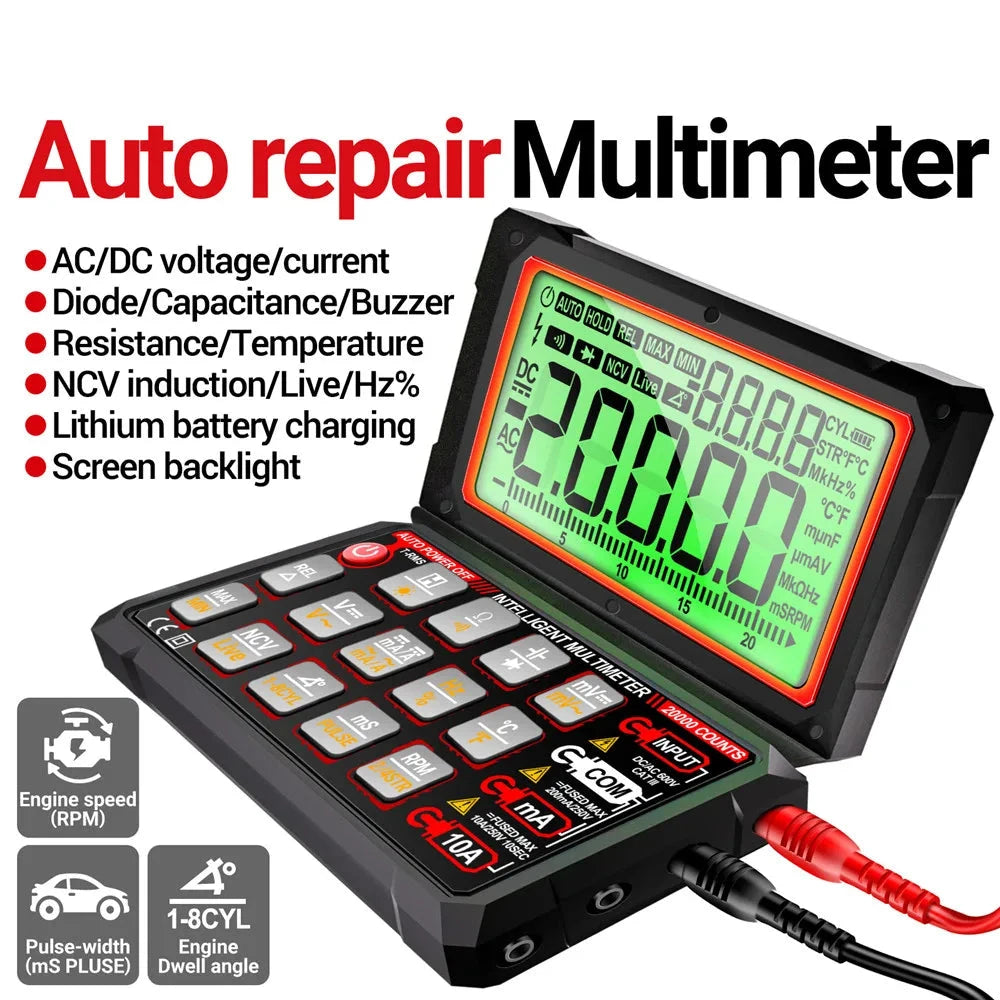

3. Advanced Features:

   • True RMS for accurate AC measurements.

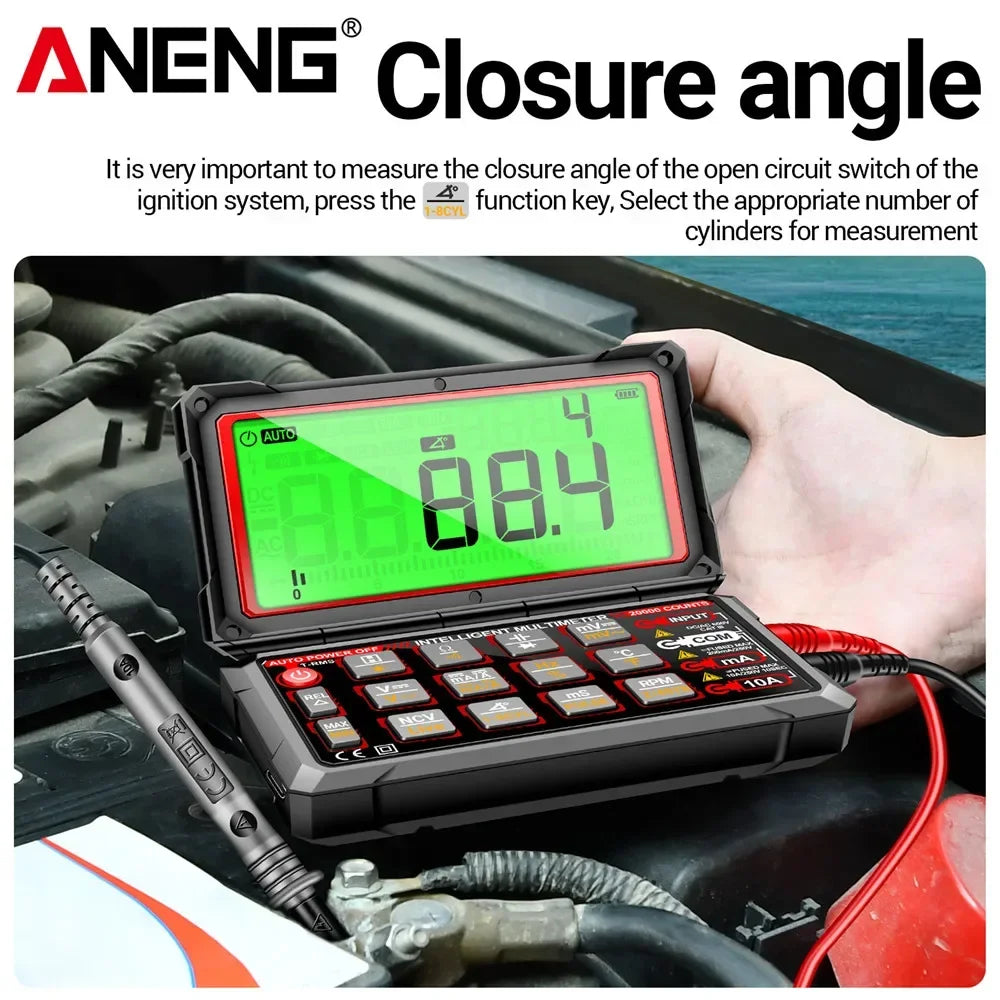

   • Engine Speed (RPM) and Engine Dwell Angle testing.
   • NCV (Non-contact Voltage) for detecting live wires.
   • MAX/MIN for capturing the highest and lowest readings.
   • REL Measure for relative measurements.
   • Diode Buzzer and mS Pulse Width for additional diagnostics.
   • Live function for checking the presence of live circuits.

4. Rechargeable Lithium Battery:

   • Powered by a 3.7V/1800mAh lithium battery for extended usage.
   • Lithium battery charging for convenient power management.

5. User-Friendly Design:

   • LCD Backlit Display for easy viewing in low light conditions.
   • Auto Power Off after 15 minutes of inactivity to conserve battery.
   • Data Retention to hold measurements for reference.
   • Low Battery Indication to alert users when it's time to recharge.

Specifications

• Max Count: 20000 Counts
• Temperature Measurement:
  • Range: -40°C to 1000°C / -40°F to 1832°F
  • Accuracy: ±(2.5% reading + 5 count)
• Frequency: 0Hz to 10MHz
• Duty Cycle: 10% to 90%
• True RMS: Yes
• Material: ABS (durable and lightweight)
• Weight: 341g
• Power Supply: Built-in 3.7V/1800mAh lithium battery (rechargeable)

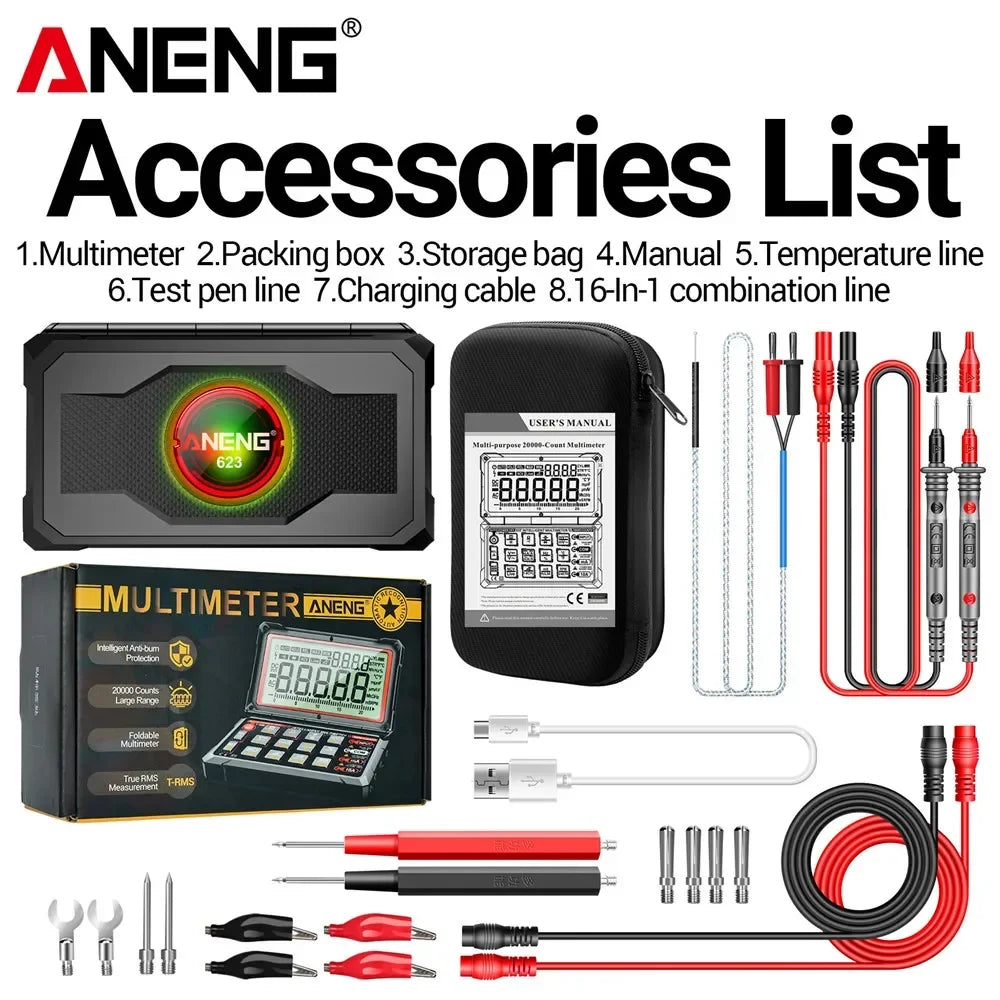

Package Includes:

• 1 * Multimeter
• 1 * Packing Box
• 1 * Storage Bag
• 1 * Manual
• 1 * Temperature Probe
• 1 * Test Pen Line
• 1 * Charging Cable
• 1 * 16-in-1 Combination Line (optional, based on your choice)
