Capacitor Tester Resistance Current Voltage Multimetro 4000 Counts Instruments Meter Multimeters NCV Backlight Tools
Capacitor Tester Resistance Current Voltage Multimetro 4000 Counts Instruments Meter Multimeters NCV Backlight Tools
Regular price
$45.99 AUD
Sale price
$45.99 AUD
Unit price
/
per
Details :
Features:
- True RMS Measurement: Provides precise measurements for both AC and DC voltage, current, and other parameters, ensuring accurate readings for non-sinusoidal waveforms.
- Wide Measurement Range: Capable of measuring AC/DC voltage, current, resistance, capacitance, and frequency (via the V file).
- Versatile Functions: Includes additional functions such as diode testing, NCV (Non-Contact Voltage), data retention, and low power indicators for enhanced convenience.
- User-Friendly: Equipped with a backlit screen for easy reading in low light conditions, a buzzer for audible continuity testing, and a double flashlight for illumination.
- Automatic Power Off: The device will automatically power off after 15 minutes of inactivity, conserving battery life.
- Compact and Durable: Built with ABS/Silicone material for durability and a compact design for easy handling.

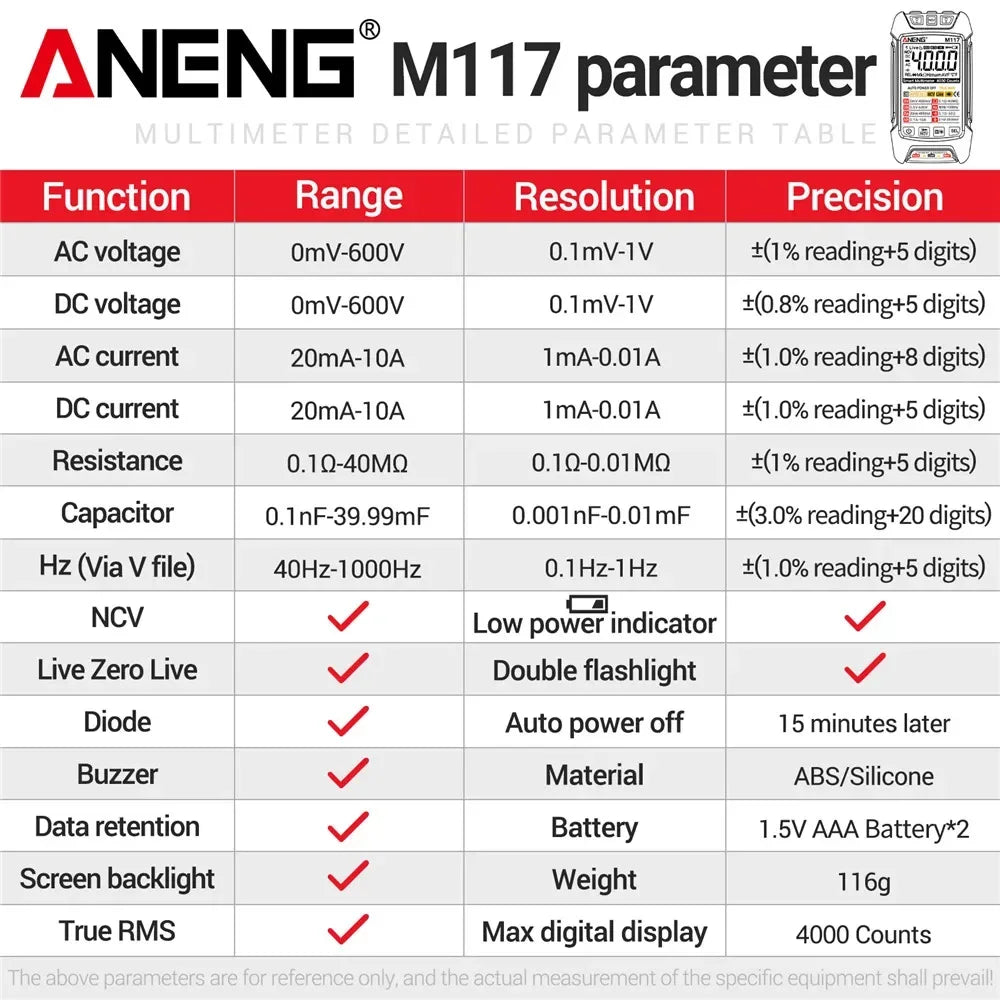

Specifications:
- Max Digital Display: 4000 counts
- AC Voltage Range: 0mV - 600V, Resolution: 0.1mV - 1V, Accuracy: ±(1% reading + 5 digits)
- DC Voltage Range: 0mV - 600V, Resolution: 0.1mV - 1V, Accuracy: ±(0.8% reading + 5 digits)
- AC Current Range: 20mA - 10A, Resolution: 1mA - 0.01A, Accuracy: ±(1.0% reading + 8 digits)
- DC Current Range: 20mA - 10A, Resolution: 1mA - 0.01A, Accuracy: ±(1.0% reading + 5 digits)
- Resistance Range: 0.1Ω - 40MΩ, Resolution: 0.1Ω - 0.01MΩ, Accuracy: ±(1% reading + 5 digits)
- Capacitance Range: 0.1nF - 39.99mF, Resolution: 0.001nF - 0.01mF, Accuracy: ±(3.0% reading + 20 digits)
- Frequency Range (via V file): 40Hz - 1000Hz, Resolution: 0.1Hz - 1Hz, Accuracy: ±(1.0% reading + 5 digits)
- NCV (Non-Contact Voltage Detection): Yes
- Live Zero: Yes
- Buzzer: Yes
- Data Retention: Yes
- Battery Type: 2 x 1.5V AAA (not included)
- Material: ABS/Silicone
- Weight: 116g

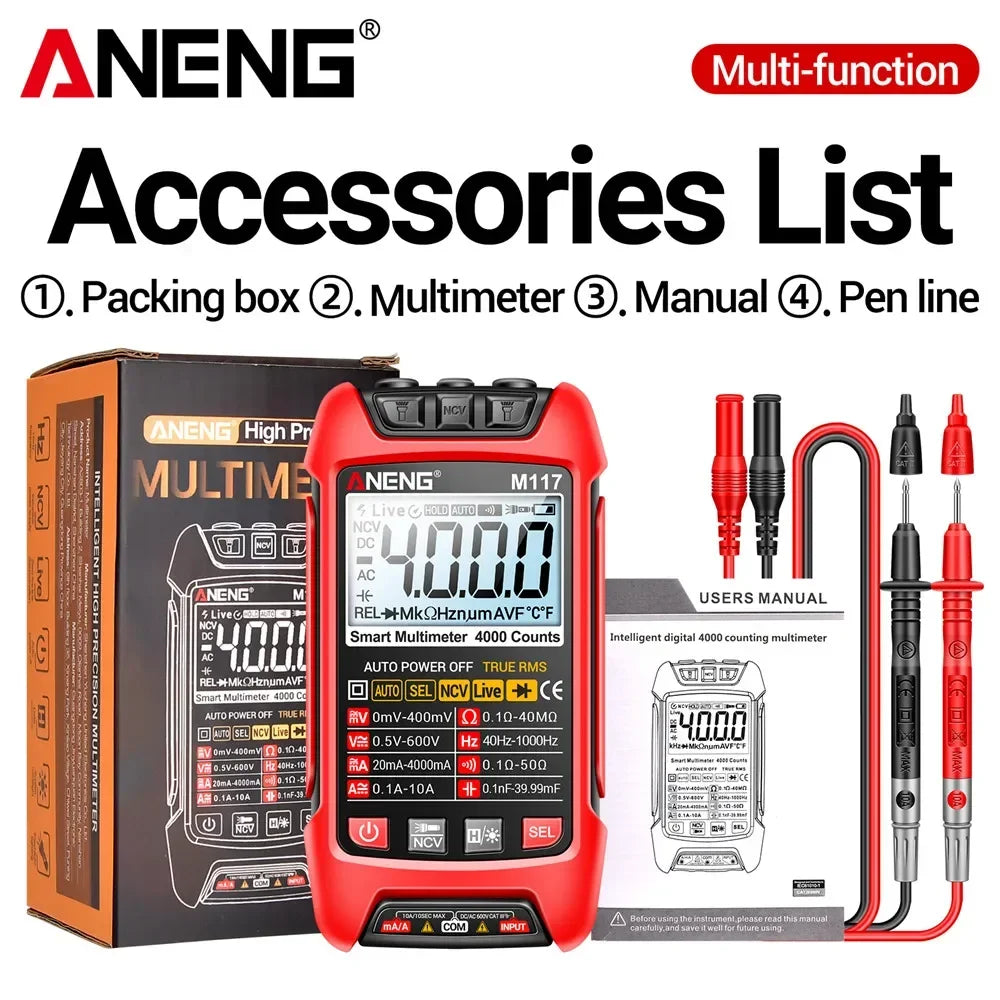

Package Includes:
- 1 x Multimeter
- 1 x English Manual
- 1 x Packing Box
- 1 x Pen Line
