Details :

Features

• Telephone Line Search:
  Allows you to test and identify issues in telephone lines, ensuring proper connection for phone systems.

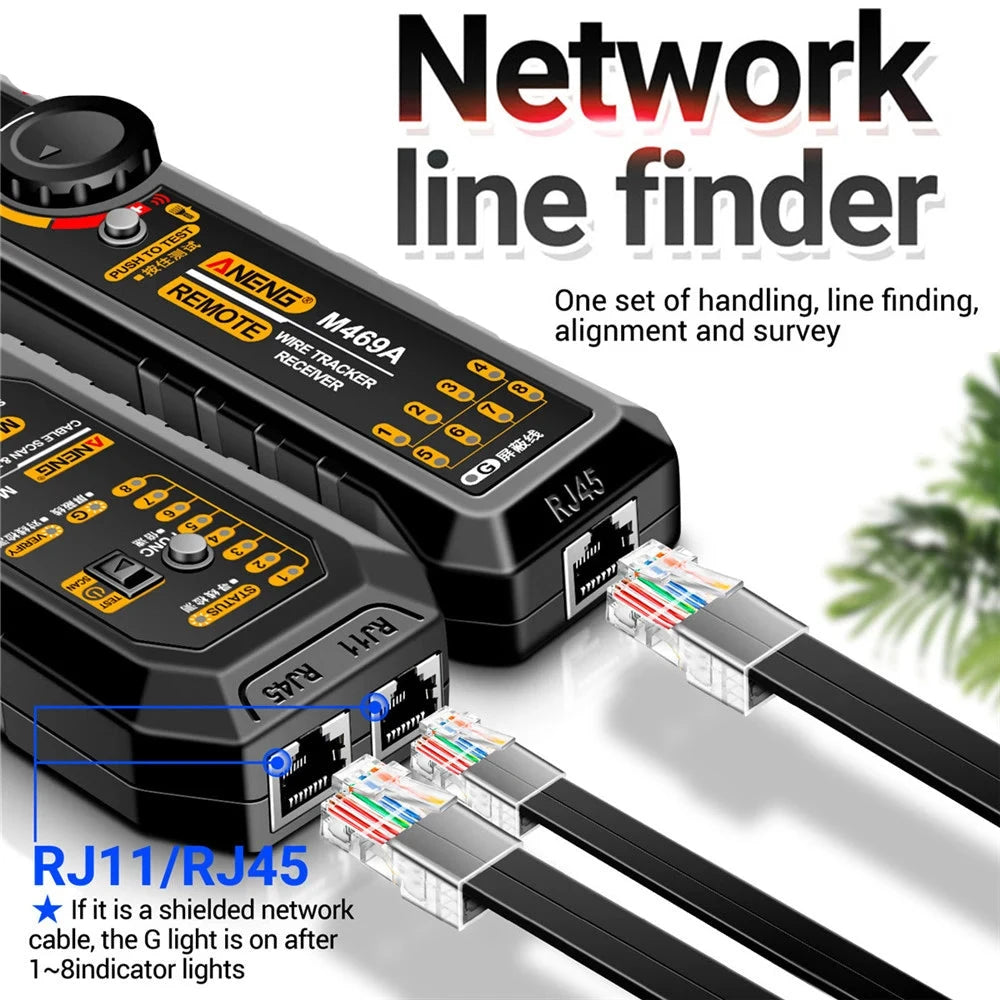

• Network Line Search:
  Ideal for identifying and testing network cables, including RJ45 connections, to ensure that they are correctly wired and functional.

• Power Cable Check:
  Tests the integrity and connection of power cables to prevent issues in electrical systems.

• Open Circuit/Short Circuit Tests:
  Quickly identifies if a circuit is open or if there is a short, helping you troubleshoot faulty lines.

• DC Voltage Test:
  Capable of testing for DC voltage, which is useful for verifying power sources in various devices and circuits.

• Low Voltage Warning:
  Alerts you when the voltage level is low, helping to prevent damage or inaccurate readings.

• Adjustable Volume:
  Allows you to control the volume of the sound output to suit your preference or working environment.

• Headset Listening:
  You can listen to the test results through a headset, ensuring that you can work in noisy environments without distractions.

• Spotlight Function:
  Built-in flashlight for working in low-light conditions, making it easier to navigate and troubleshoot cables.

• Energy Saving:
  Designed with power-saving features to extend the life of the batteries.

How to Use for Network Cable Testing

1. Connect the Cable:
   Insert the RJ45 connectors at both ends of the network cable into the corresponding ports of the transmitter and receiver.

2. Set the Test Mode:
   Turn the function selector switch of the transmitter to the "test" position. The "VERIFY" indicator will light up, indicating that the transmitter is working.

3. Test and Analyze:
   The 18 sequence lights on the device will help you identify if there is a short circuit, open circuit, or crossover. The tester will automatically scan the cable, checking pairs 1 through 8 to identify any issues.

4. Switch Between Fast and Slow Scanning:
   You can toggle between fast and slow scan modes using the "switch" button for quicker or more detailed testing.

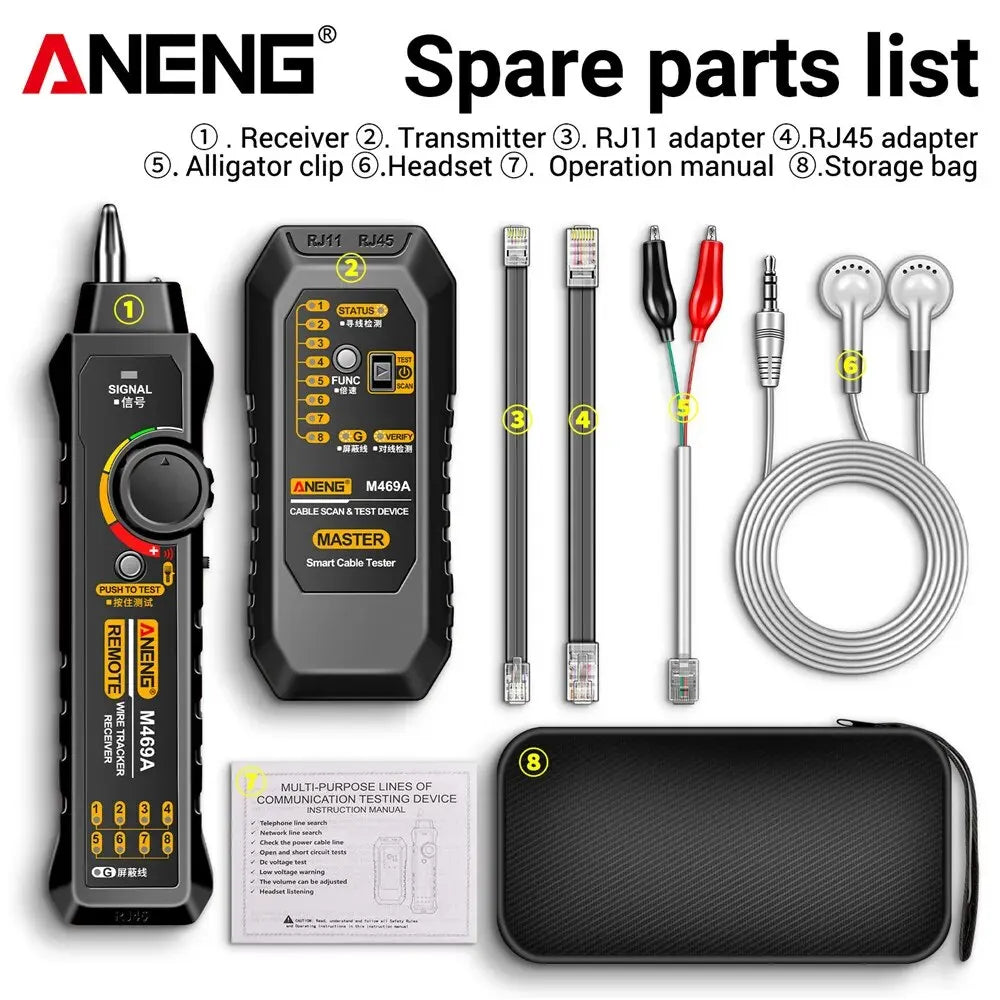

Package Includes

• As Shown in the Picture:
  The set includes the transmitter, receiver, and necessary accessories for testing network and telephone lines.
