HD Digital Insulation Resistance Gauge Ohmer Testers 1000V Megometer Megohmmeter Ohm Test Auto Range Backlight Meters
HD Digital Insulation Resistance Gauge Ohmer Testers 1000V Megometer Megohmmeter Ohm Test Auto Range Backlight Meters
Regular price
$89.99 AUD
Sale price
$89.99 AUD
Unit price
/
per
Details :
Specifications
Function | Range | Accuracy |
---|---|---|
Output Voltage | 100V/250V/500V/1000V | ±10% |
Output Current | 250V (R=250kΩ): 1mA | ±10% |
500V (R=500kΩ): 1mA | ||
1000V (R=1MΩ): 1mA | ||
Resistance Measurement | 250V: 0.1MΩ - 20MΩ | ±(4% ± 2) |
500V: 0.1MΩ - 50MΩ | ||
1000V: 0.1MΩ - 100MΩ | ||
250V: 20MΩ - 500MΩ | ±(4% ± 2) | |
500V: 50MΩ - 1000MΩ | ||
1000V: 100MΩ - 2000MΩ | ||
AC Voltage (ACV) | 750V | ±(1% + 6) |
Short-Circuit Current | < 1.8mA | |
Median Resistance | 250V/500V: 2MΩ | |
1000V: 2MΩ |
Features
- Wide Voltage Range: Supports multiple output voltage levels (100V, 250V, 500V, 1000V).
- Auto Ranging: Ensures precise resistance measurement up to 2000MΩ.
- AC Voltage Detection: Measures up to 750V AC with high accuracy.
- Backlight Display: Enables visibility in low-light conditions.
- Portable Design: Compact size with a storage bag for convenience.

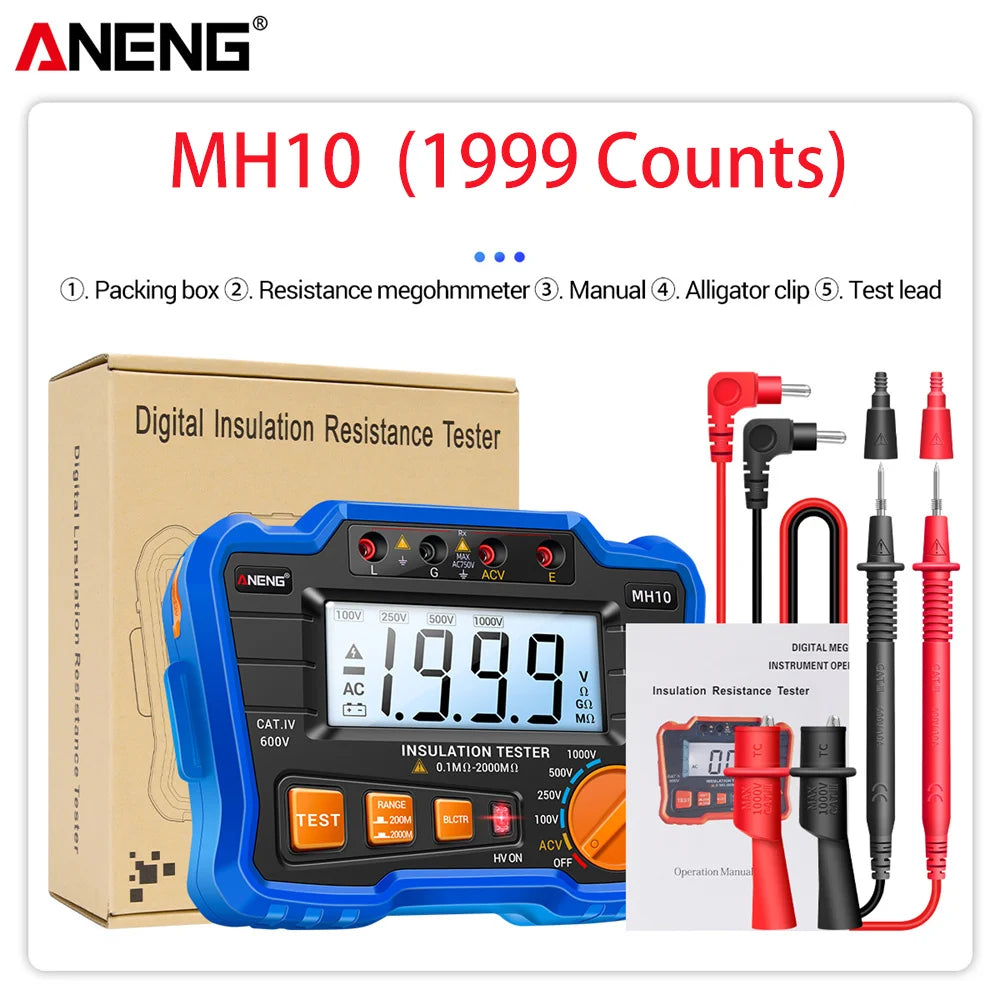

Package Includes
- 1 x Resistance Megohmmeter
- 1 x Alligator Clip
- 1 x Test Lead
- 1 x Storage Bag
- 1 x User Manual
- 1 x Packing Box
