Details :

Features:

• Multiple Voltage Outputs: Capable of outputting voltages at 50V, 100V, 250V, 500V, and 1000V for testing insulation and resistance.
• AC/DC Voltage Measurement: Measures AC and DC voltages from 10V to 600V.
• Data Storage: Can store 100 groups of data, making it easy to track multiple tests over time.
• Automatic Functions: Includes auto-ranging, automatic discharge, and date retention for easy and efficient operation.

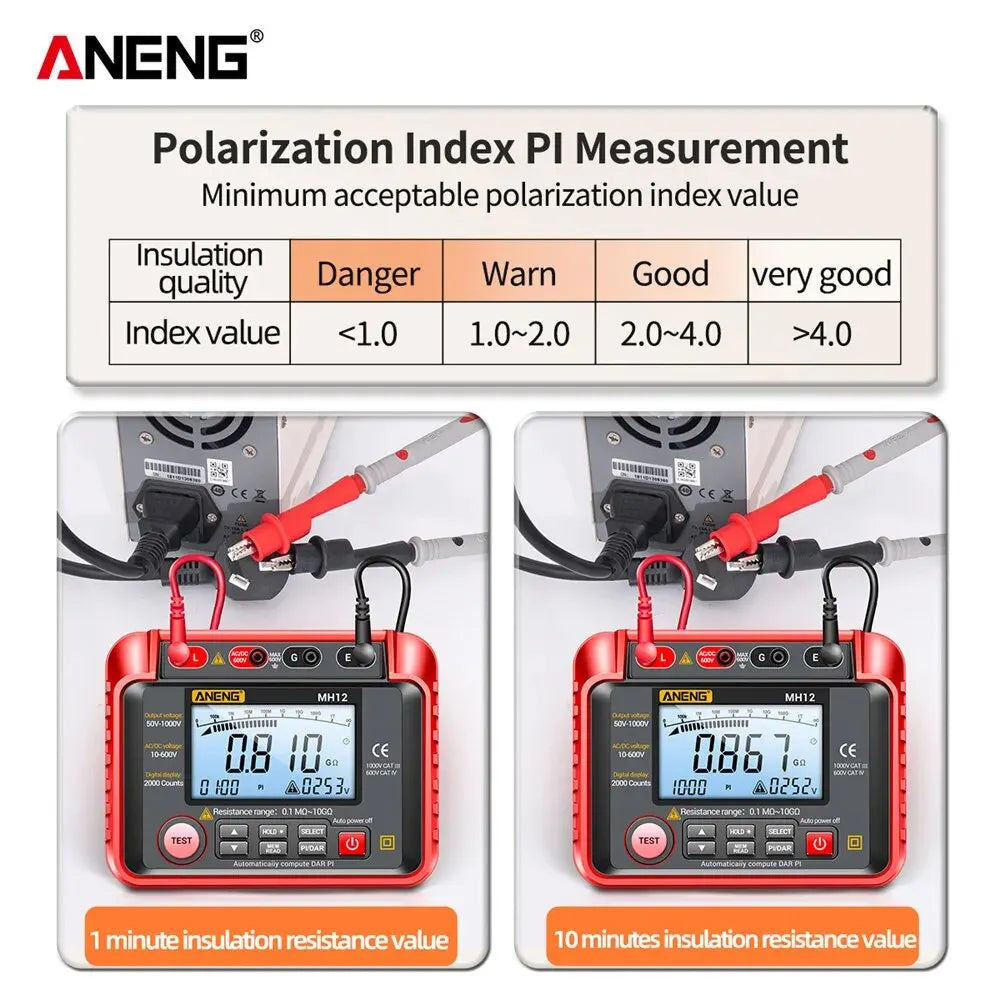

• Polarization Index: Useful for determining the quality of insulation.
• Time Display: Allows monitoring the test duration.
• High Accuracy: Provides accurate readings with a basic accuracy of ±(5+10%) for various voltage levels.

Technical Specifications:

• Measuring Range:
  • Insulation Resistance: 50V/100V/250V/500V/1000V (±(5+10%))
  • AC Voltage: 10-600V (±(1+5%))
  • DC Voltage: 10-600V (±(0.8+5%))
• Maximum Display: 2000 counts
• Battery: Powered by 8 AA batteries (not included).
• Storage: Stores 100 groups of data for easy retrieval and monitoring.
• Polarization Index: Yes
• Time Display: Yes
• Automatic Discharge: Yes
• Data Retention: Yes

Package Includes:

• 1 x Resistance Megohmmeter
• 1 x Test Lead
• 1 x English Manual
• 1 x Packing Box
• 1 x Alligator Clip
