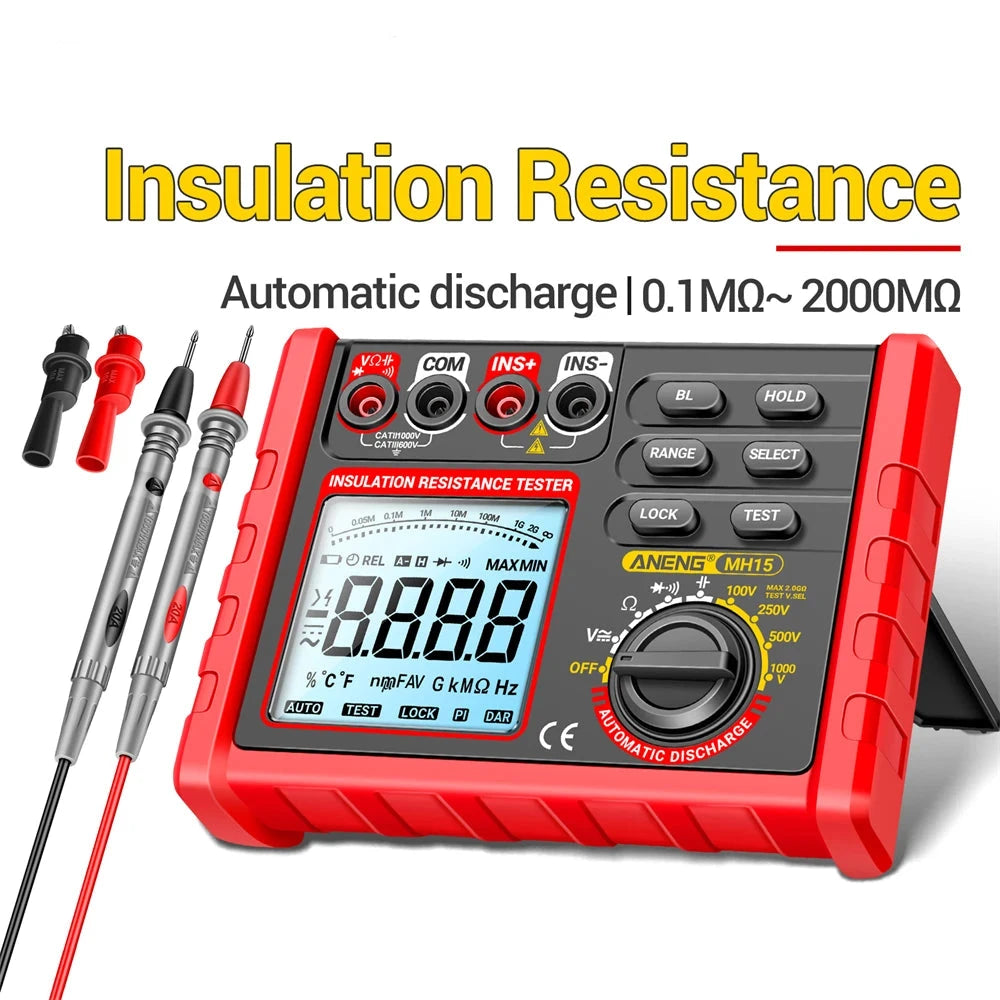

High Voltage Insulation Resistance Testing: Measures insulation resistance at multiple voltage levels (100V, 250V, 500V, 1000V) for a wide range of applications.
6000 Counts Display: Provides precise readings with a high-resolution LCD display.
Automatic Shutdown: Conserves battery life by shutting down after 15 minutes of inactivity.
Data Retention: Enables users to hold and view measurements conveniently.
Automatic Discharge: Enhances safety by automatically discharging residual voltage after testing.
Low Power Prompt: Alerts the user when the battery is low to avoid interruptions.
Buzzer and Diode Testing: Additional features for enhanced functionality.
Specifications:
Function
Range
Resolution
Precision
AC Voltage
0V–750V
1mV–1V
±(2.5%+5d)
DC Voltage
0mV–1000V
0.1mV–1V
±(1.5%+5d)
Capacitance
0nF–60mF
1pF–10uF
±(6.0%+20d)
Resistance
0Ω–60MΩ
0.1Ω–10kΩ
±(1.5%+10d)
Insulation Resistance Functional Range:
Test Voltage Gear
Display Range
Precision
100V
0.1~100MΩ
±(3.0%+10d) / ±(4.0%+10d)
250V
0.1~200MΩ
±(3.0%+10d) / ±(4.0%+10d)
500V
0.1~500MΩ
±(3.0%+10d) / ±(5.0%+10d)
1000V
0.1~2000MΩ
±(3.0%+10d) / ±(6.0%+10d)
Material:
Body Material: ABS/Silicone
Weight: 419g
Power Source:
Requires 6x 1.5V AA batteries (not included in shipment).
