Details :

Features

1. Wide Measurement Range:

   • AC Voltage: 4V, 40V, 400V, 600V
   • DC Voltage: 400mV, 4V, 40V, 400V, 600V
   • AC Current: 40A, 400A
   • Resistance: 400Ω, 4KΩ, 40KΩ, 400KΩ, 4MΩ, 40MΩ
   • Capacitance: 1nF to 4µF, 4µF to 400µF, 4mF
   • Frequency: 10Hz to 400kHz, 400kHz to 4MHz

2. Accuracy:

   • AC Voltage: ±(1.5% + 3) for 4V/40V/400V/600V
   • DC Voltage: ±(1.5% + 5) for 400mV; ±(1.0% + 3) for 4V/40V/400V/600V
   • Resistance: ±(1.2% + 3) for 400Ω-4MΩ; ±(1.5% + 5) for 40MΩ
   • AC Current: ±(2.5% + 3) for 40A/400A
   • Capacitance: ±(2.5% + 10) for 1nF to 4µF; ±(4.0% + 20) for 4µF to 400µF; ±(5.0% + 30) for 4mF
   • Frequency: ±(1.0% + 5) for 10Hz–400kHz; ±(2.0% + 5) for 400kHz–4MHz

3. Convenient Clamp Design:

   • Allows for non-contact current measurement, which makes it easier and safer to test without interrupting the circuit.

4. 4000 Counts Display:

   • Provides a clear and precise reading of measurements with a large display for easy viewing.

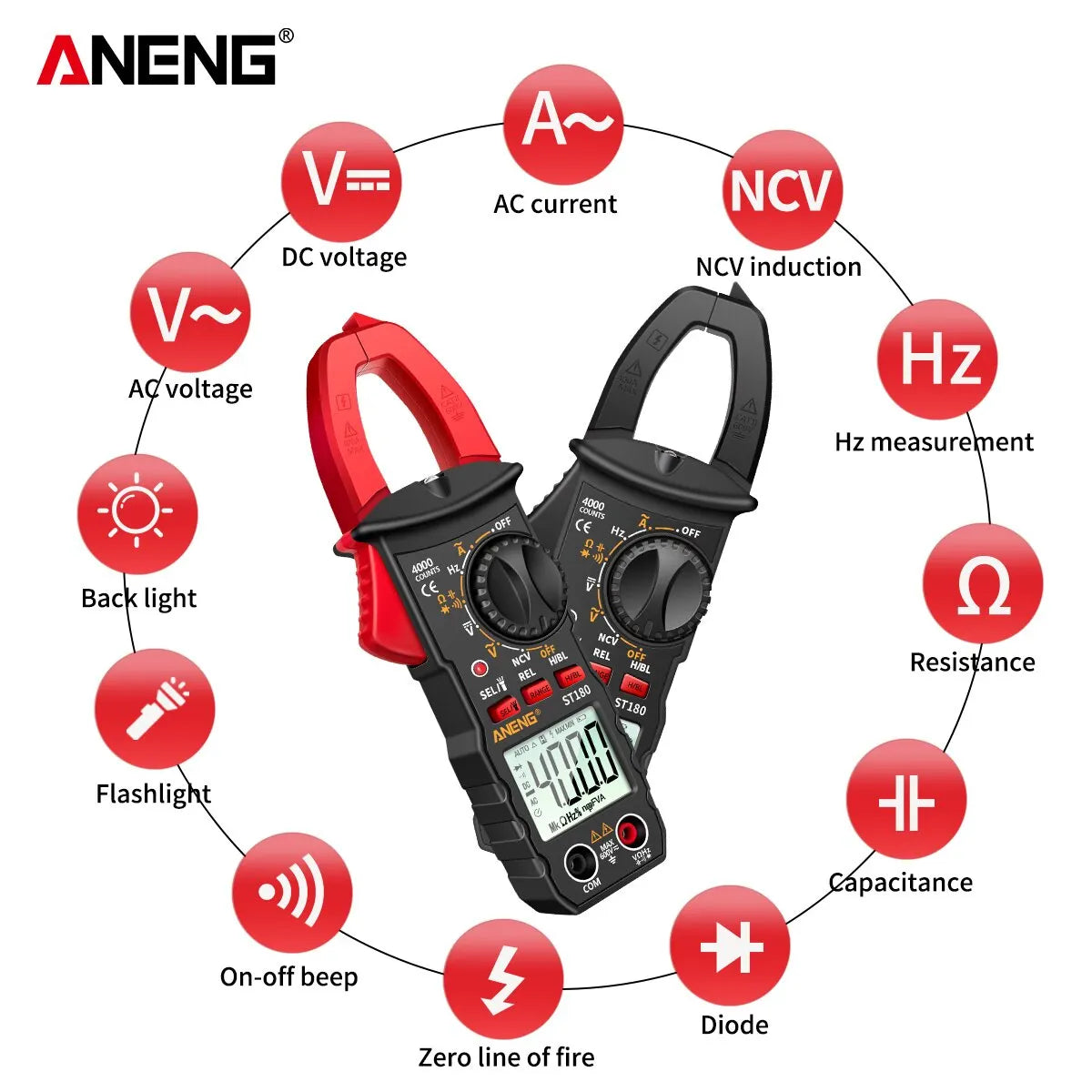

5. Multi-Functional:

   • Measures voltage, current, resistance, capacitance, and frequency, making it a great all-in-one tool for various electrical tests.

Specifications

• Model: ST180
• Display: 4000 counts
• AC Voltage: 4V, 40V, 400V, 600V (±(1.5%+3))
• DC Voltage: 400mV, 4V, 40V, 400V, 600V (±(1.5%+5) for 400mV, ±(1.0%+3) for higher ranges)
• AC Current: 40A, 400A (±(2.5%+3))
• Resistance: 400Ω-40MΩ (±(1.2%+3) for lower ranges, ±(1.5%+5) for higher ranges)
• Capacitance: 1nF to 4mF (±(2.5%+10) to ±(5.0%+30))
• Frequency: 10Hz–400kHz (±(1.0%+5)), 400kHz–4MHz (±(2.0%+5))
• Weight: Light and portable for easy handling.

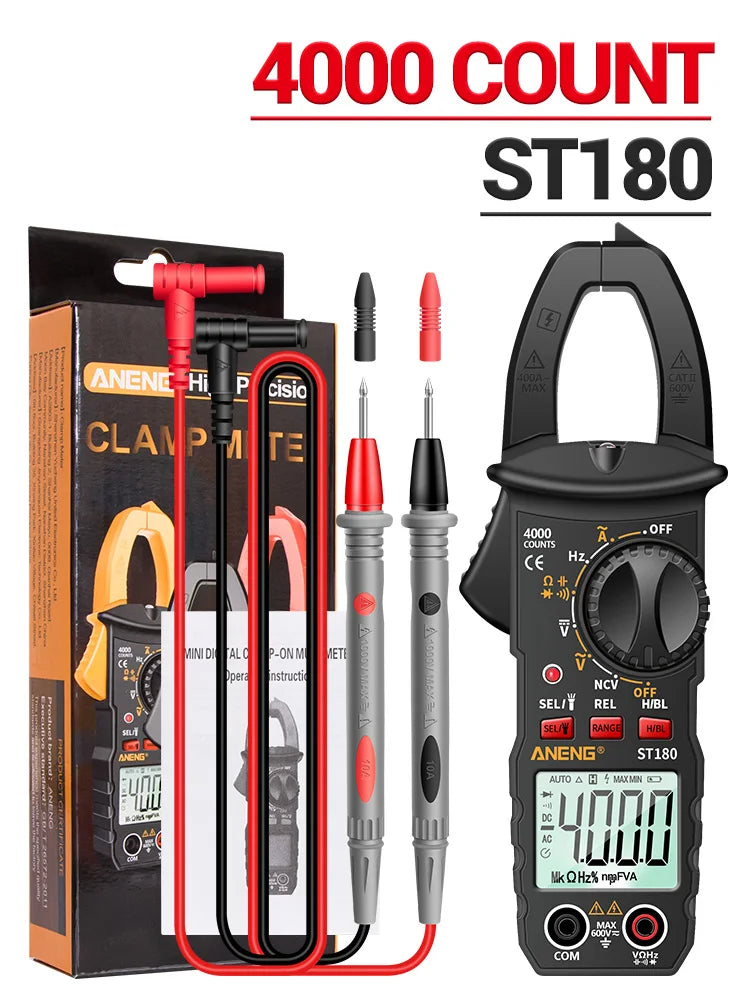

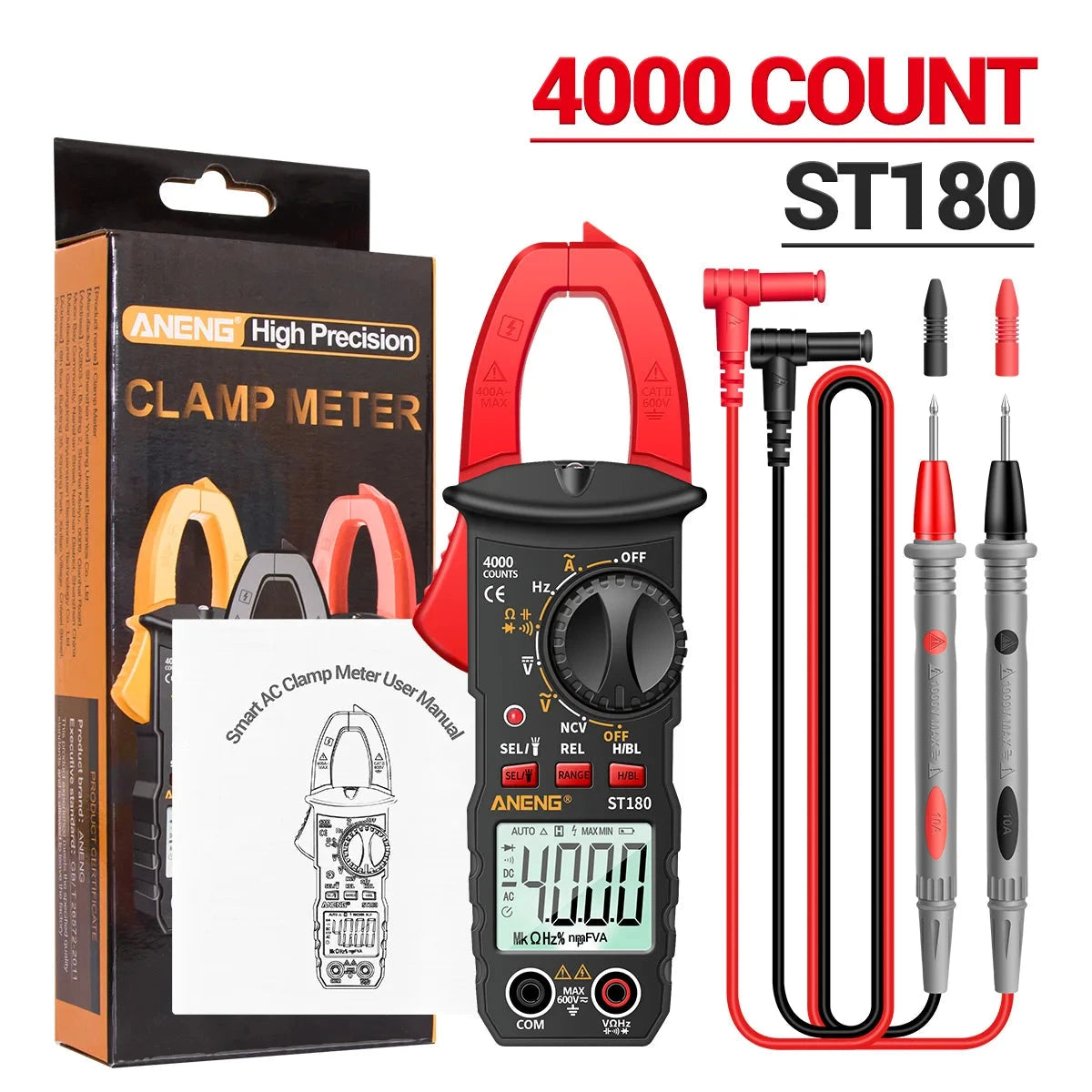

Package List

• 1 * Clamp Meter (battery not included)
• 2 * Test Probes
• 1 * User Manual
• 1 * Outer Packing Box (according to the choice)
